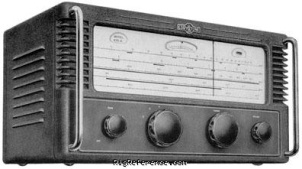

Eddystone 670A

Desktop Shortwave receiver

Specs Manuals (3) Reviews (0) Prices (0) Compare

Find Eddystone 670A rigs and spare parts on eBay

Find the Eddystone 670A on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

The 670 series was expressly designed for ship board cabin use. The 670A has five ranges: .15-.38, .54-1.5 3.7-10.6 and 10.5-30 MHz. The fifth "range" is marked "G" which is for a gramophone (phonograph) input. The broadcast bands are marked on the dial. The vernier tuning scale is a mechanical bandspread scheme that provides a quick and accurate means to return to a previously logged frequency. The tuning indicator (DM70) is a green fluorescent tube. With no signal the glow will extend to its full length. When a signal is received the glow contracts.

General characteristics

HAM bands: 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 150-380 kHz / 0.54-30 MHz in four bands
Modulations: AM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Single Conversion Superheterodyne
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Connections

Antenna: -
Impedance: 50Ω
Other: -

Electrical

Power requirements: Mains (AC or DC)
Current drain RX: ?
TX: -

Physical

Dimensions (w×h×d): ?
Weight: ?
Form factor: Base Station
Manufactured: Between 1953 and 1960 in Great Britain

Other features

Usage: Marine / Navy
Features + options: • Speaker Output • Dial Lamp • Rack Handles • Tuning Indicator • Speaker • Phono Input • Vernier Tuning • Log Scale 0-2500 • Tone • Flywheel Tuning
Accessories: -
RigReference ID: 2614
MPN: EDDYSTONE-000670A

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Eddystone 670 Brochure PDF - Unknown size, submitted by RigReference
: Eddystone 670A Instruction Manual PDF - 2.84 MB, submitted by RigReference
: Eddystone 670C Instruction Manual PDF - 6.64 MB, submitted by RigReference
