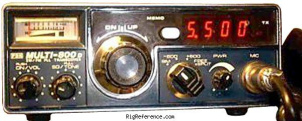

The FDK Multi-800D is a mobile VHF transceiver. It covers 144-148 MHz for both receive and transmit with 5 kHz tuning steps. The receiver system is a double conversion superheterodyne with IF frequencies of 1st: 16.9 MHz and 2nd: 455 kHz, and image rejection of 60 dB. RF output is 1-25 W. Audio output is 1.2 W at 10% distortion / 8 ohms. The transceiver requires 11-15 V DC power supply with a current drain of 1.5 A max in receive and 1.8-6.5 A in transmit. Dimensions are 71 × 162 × 260 mm and the weight is 3 kg.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 kHz
- Memories
- None
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM
- Sensitivity
- 0.4 µV (20 dB N/Q)
- Selectivity
- 12 kHz (-6 dB) / 24 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 16.9 MHz
2nd: 455 kHz - Image rejection
- 60 dB
- Audio output
- 1.2 W at 10% distortion / 8 ohms
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM
- RF-output
- 1-25 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 11-15 V DC
- Current drain RX
- 1.5 A max
- TX
- 1.8-6.5 A
Physical
- Dimensions (w×h×d)
- 162 × 71 × 260 mm (6.38 × 2.80 × 10.24 in)
- Weight
- 3.00 kg (6.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2669
- MPN
- FDK-MULTI-000800D
