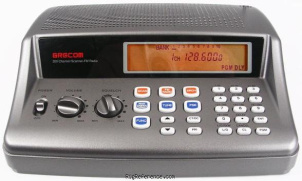

The GRE / GRECOM PSR-200 is a VHF/UHF scanner / receiver. The frequency range for reception is 29-54 / 108-174 / 380-512 MHz with tuning steps of 5 / 12.5 kHz. It employs a double conversion superheterodyne receiver system with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. The PSR-200 features weather alert/SAME/FIPS/Skywarn and has 1 memory bank with 200 channels. It requires a power supply of 9 V DC and draws a current of 50 mA when receiving (squelched). Dimensions are 60 × 210 × 175 mm.
General characteristics
- HAM bands
- 6m 2m 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 12.5 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 29-54 / 108-174 / 380-512 MHz
- Modulations
- AM FM
- Sensitivity
- 29-54 MHz: 0.5 µV
108-137 MHz: 1 µV
137-174 MHz: 0.5 µV
380-512 MHz: 0.7 µV
(20 dB S/N) - Selectivity
- ± 8 kHz (-6 dB), ± 17 kHz (-50 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 9 V DC
- Current drain RX
- 50 mA (squelched)
- TX
- -
Physical
- Dimensions (w×h×d)
- 210 × 60 × 175 mm (8.27 × 2.36 × 6.89 in)
- Weight
- 690 gr (1.5 lbs)
- Form factor
- Base Station
- Manufactured
- Between 200x and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Weather alert/SAME/FIPS/Skywarn
- Accessories
- -
- RigReference ID
- 2697
- MPN
- GRE-GRECOM-PSR-000200
