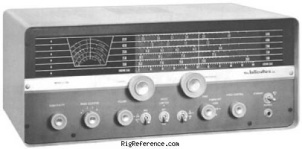

Ranges: .538-1.6, 1.55-4.6, 4.6-13 and 12-34 MHz. Bandspread: 3.5-4, 7-7.3, 14-14.4, 20.1-21.5 and 26-30 MHz. Note that the bandspread ranges are on the long horizontal scale. The speaker is built into the top panel, facing up. Gray metal cabinet.
There was a choice of matching external speakers: R-46B, R-47 or R-48 to replace the built-in speaker.
Original price in 1959: USD 130~150.
General characteristics
- HAM bands
- 80m 40m 20m 15m 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.54-34 MHz in 4 bands
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion (8 tubes)
- IF-frequencies
- 455 kHz
- Image rejection
- ?
- Audio output
- Internal speaker
Connections
- Antenna
- Clamps / screws
- Impedance
- 50-600Ω
- Other
- -
Electrical
- Power requirements
- Mains (105-125 V AC, 50/60 Hz)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 476 × 216 × 259 mm (18.74 × 8.50 × 10.20 in)
- Weight
- 14.50 kg (32.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1959 and 1963 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- •¼" Head. Jack • AVC ON/OFF • BFO • Bandspread • RF Gain • ANL • Mute Line • Speaker Terminals • Tone • Standby • Speaker
- Accessories
- -
- RigReference ID
- 2753
- MPN
- HALLICRAFTERS-S-000108
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters S-108. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Hallicrafters S-108 is around:
- USD 79.00 ~ USD 67.00
These estimates are based on the following prices:
