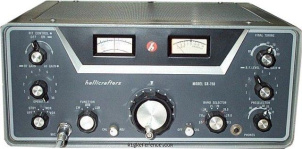

Hallicrafters SR-150

Desktop Shortwave Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Hallicrafters SR-150 is a 10-80 m transceiver. RF output is SSB: 150 W (PEP input), CW: 125 W (input). Power requirements are met by a separate PSU (Mains or 12V DC option). Dimensions are 165.1 × 381 × 330.2 mm.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 10-80 m
Modulations: CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: 19 tubes, 12DQ6B finals
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 10-80 m
Modulations: CW SSB
RF-output: SSB: 150 W (PEP input), CW: 125 W (input)

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: Separate PSU (Mains or 12V DC option)
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 381 × 165.1 × 330.2 mm (15.00 × 6.50 × 13.00 in)
Weight: 7.94 kg (17.5 lbs)
Form factor: Base Station
Manufactured: Between 1961 and 1963 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2795
MPN: HALLICRAFTERS-SR-000150

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
