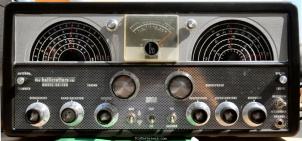

The Hallicrafters SX-100 is a desktop HF/VHF receiver covering 0.538-1.58 / 1.72-34 MHz. It requires mains power and has a weight of 15.6 kg. Dimensions are 226.06 × 469.9 × 279.4 mm. Current drain in receive mode is 105 mA @ 280 V, 1.4 A @ 6.3 V.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.538-1.58 / 1.72-34 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50/600 Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 105 mA @ 280 V, 1.4 A @ 6.3 V
- TX
- -
Physical
- Dimensions (w×h×d)
- 469.9 × 226.06 × 279.4 mm (18.50 × 8.90 × 11.00 in)
- Weight
- 15.60 kg (34.4 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1955 and 1961 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2805
- MPN
- HALLICRAFTERS-SX-000100
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hallicrafters SX-100 in Good condition is around:
- USD 164 ~ USD 178
