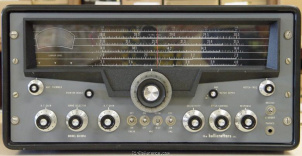

The Hallicrafters SX-101A amateur band receiver tunes the major amateur bands: 3.5-4, 7-7.3, 14-14.4, 21-21.5, 28-30 MHz and WWV at 10 MHz. The dial is also precalibrated for an external 6 or 2 meter converter (50-54 and 144-148 MHz). The rear panel has speaker and antenna terminals and a converter jack. The cover is hinged.
The circuit consists of: 6DX6 RF Amp, 6BY6 1st Mixer, 6BA6 1650 kHz IF Amp, 6BA6 2nd Mixer, 6DC6 50 kHz IF Amp, 6BY7 Detector/ANL/AVC, 6SC7 Audio Amp/BFO, 6SC7T Audio Out, 0A2 Voltage Regulator, 5Y3GT Rectifier, 12AT7 2nd Converter Osc, 6C4 50 kHz IF Amp and 6AU6 Crystal Calibrator.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-80 m / 30-34 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- requires external speaker
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (105-125 V AC 50-60 Hz)
- Current drain RX
- 75 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 508 × 267 × 406 mm (20.00 × 10.51 × 15.98 in)
- Weight
- 31.75 kg (70.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1959 and 19xx in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Headphone Jack
AVC ON/OFF
Calibrator 100 kHz
RF Gain
ANL
Mute Line
Antenna Trimmer
Notch
BFO
Speaker Terminals
Standby and Converter Input - Accessories
- -
- RigReference ID
- 2807
- MPN
- HALLICRAFTERS-SX-000101A
