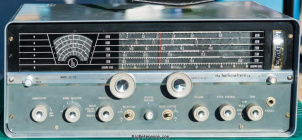

The Hallicrafters SX-110 general coverage receiver tunes from 535 to 34000 kHz in four bands. The main ranges: .538-1.6, 1.55-4.6, 4.6-13 and 12-34 MHz. Bandspread: 3.5-4, 7-7.3, 14-14.4, 20.1-21.5 and 26-30 MHz.
The circuit consists of: 6SG7 RF Amp, 6SA7 Converter, 6SG7 1st IF Amp, 6SK7 2nd IF Amp, 6SC7 Audio Amp/BFO, 6K6GT Audio Output, 6H6 Detector/ANL/AVC and 5Y3GT Rectifier.
General characteristics
- HAM bands
- 80m 40m 20m 15m 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.538-34 MHz
- Modulations
- AM CW
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- External speaker required
Connections
- Antenna
- Clamps / screws
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains (105-117 V AC)
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 476 × 216 × 259 mm (18.74 × 8.50 × 10.20 in)
- Weight
- 13.00 kg (28.7 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1960 and 1963 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- ¼" Headphone Jack
S-Meter
AVC ON/OFF
Tone LO/MED/HI
RF Gain
ANL
Mute Line
Antenna Trimmer
BFO
Standby
Dial Lamp
Speaker Terminals - Accessories
- -
- RigReference ID
- 2808
- MPN
- HALLICRAFTERS-SX-000110
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-110. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Hallicrafters SX-110 is around:
- USD 12.00 ~ USD 3.00
These estimates are based on the following prices:
