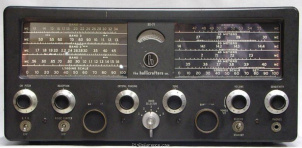

The Hallicrafters SX-71 receiver was manufactured by Hallicrafters from 1949 to 1954. They made the receiver with white and black dials. The white dials were for the earlier models (approximately 1949-1950) and the black dials came out in the later years of production. The SX-71 has a black satin steel cabinet with chrome trim, and a piano hinge top. This receiver is not light...it weighs 33 pounds and is 18 1/2 inches wide, 7 7/8 inches high and 12 inches deep. Its sale price ranged from $179.50 to $249.50.

The Hallicrafters SX-71 receiver is a double conversion superheterodyne general coverage communications receiver with 14 tubes. The frequency coverage is from 538 kc to 35,000 kc and 46 - 56 MHz. It not only picks up AM and CW signals, but it receives narrow band FM. It has good selectivity and sensitivity and has 3 watts of audio output. It sounds good with a Hallicrafters R-44B speaker (manufactured for the receiver with white dials) or R-46 speaker (manufactured for the receiver with black dials).

Original price 1950 in the US: USD 179.50

General characteristics

HAM bands
6m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.538-35 / 46-56 MHz
Modulations
AM   N-FM   CW
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion, 14 tubes
IF-frequencies
?
Image rejection
?
Audio output
3 W (external speaker required)

Connections

Antenna
-
Impedance
?
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
330 × 130 × 280 mm (12.99 × 5.12 × 11.02 in)
Weight
15.00 kg (33.1 lbs)
Form factor
Base Station
Manufactured
Between 1949 and 1954 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2826
MPN
HALLICRAFTERS-SX-000071

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Super sensitive 8 years ago by Larry G.

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters SX-71. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters SX-71 is around:

  • USD 48.00 ~ USD 39.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2016 USD 80.00 New / Good Larry G.
2015 USD 80.00 Used / Good Larry G.
