This is, according to some, the best Hallicrafters ever made. This makes it highly sought after by collectors. The receiver is driven by 20 tubes and is aimed at the high-end customers, with a price tag to match. Due to the limited production run and high price very few SX-88's survive today. A number of less than 100 is estimated.

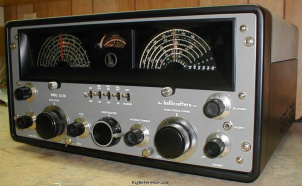

Similar to the Hallicrafters SX-42 and other Hallicrafters sets, the SX-88 has a painted front panel with slightly raised lettering. The heavy metal bezel surrounding the dials is not so typical and gives the radio a dramatic appearance. The cabinet top is hinged, giving easy access for replacing dial lamps or tubes.
The SX-88 is a continuous-coverage (all wave) receiver, covering all frequencies from 535 kHz to 33 MHz in six bands. Both tuning knobs are gear-driven and weighted with heavy flywheels. Small chrome-plated locks are located next to each tuning knob. The centrally-located bandswitch uses a stout drive belt and takes more muscle to move than on many radios. In addition to the switch elements themselves, the bandswitch controls the moving pilot lamps behind each dial.
Original price in 1954: USD 595.00
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 0.535-33 MHz in 6 bands
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 1st: 2075/1550 kHz
2nd: 50 kHz (!) - Image rejection
- ?
- Audio output
- 10 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 508 × 235 × 444 mm (20.00 × 9.25 × 17.48 in)
- Weight
- 34.00 kg (75.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1954 and 1955 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2829
- MPN
- HALLICRAFTERS-SX-000088
Manuals, diagrams and brochures
-
No documents available for this particular model.
