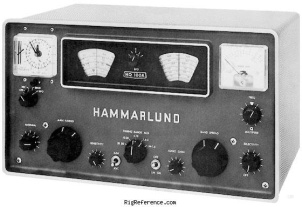

The Hammarlund HQ-100AC general coverage receiver with analog display. It tunes shortwave in four bands: .54-1.6, 1.6-4, 4-10, 10-30 MHz and 20 meter bandspread. Other enhancements include: antenna trimmer, noise limiter, RF gain, S-meter, BFO, stand-by and AVC on/off. This radio does not have a built in speaker. There are 3.2 ohm speaker terminals on the rear panel. The suggested optional speaker is the S-100.
The Hammarlund HQ-100A is the same, but without the built-in 24 hour clock-timer.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.54-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- -
Physical
- Dimensions (w×h×d)
- 413 × 241 × 233 mm (16.26 × 9.49 × 9.17 in)
- Weight
- 13.60 kg (30.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1956 and 1961
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2834
- MPN
- HAMMARLUND-HQ-000100AC
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hammarlund HQ-100AC. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Hammarlund HQ-100AC is around:
- USD 80.00 ~ USD 2.00
These estimates are based on the following prices:
