The Hammarlund HQ-170 amateur band receiver tunes only the amateur bands: 1.8-2, 3.5-4, 7-7.3, 14-14.4, 21-21.6, 28-30 and 50-54 MHz with provision for adding an integrated 2-meter converter. This radio does not have a built in speaker. There are 3.2 ohm speaker terminals on the rear panel. The suggested optional speaker is the S-200.

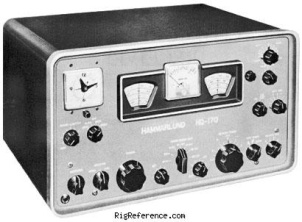

The model Hammarlund HQ-170C features a clock-timer.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 6m 2m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 160-6 m
(2 m optional) - Modulations
- AM CW SSB DSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Connections
- Antenna
- SO-239 + Clamps / screws
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- 120W
- TX
- -
Physical
- Dimensions (w×h×d)
- 483 × 267 × 330 mm (19.02 × 10.51 × 12.99 in)
- Weight
- 17.25 kg (38.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1958 and 1962 in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2846
- MPN
- HAMMARLUND-HQ-000170C
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hammarlund HQ-170C. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Hammarlund HQ-170C in Good condition is around:
- CAD 200
These estimates are based on the following prices:
