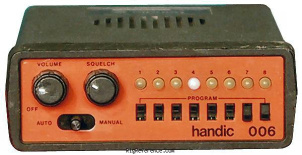

The Handic 006 (Newer) is a mobile VHF scanner/receiver. It covers 68-88 / 144-174 MHz and features a crystal controlled double conversion receiver system with IF frequencies of 1st: 10.7 MHz and 2nd: 455 kHz. Image rejection is 35 dB. The audio output is 2 W into 8 ohms. It has 1 memory bank with 8 channels. The power requirement is 12-15 V DC and the current drain in receive mode is 10 W. Dimensions are 45 × 115 × 165 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 8 channels in 1 bank(s) @ 20 channels/second
Receiver
- RX-range
- 68-88 / 144-174 MHz
- Modulations
- FM
- Sensitivity
- 1.0 µV
- Selectivity
- 13.5 kHz (-6 dB)
20 kHz (-60 dB) - Filters
- ?
- Receiver system
- Crystal controlled double conversion
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 kHz - Image rejection
- 35 dB
- Audio output
- 2 W into 8 ohms
Connections
- Antenna
- KOK1 (Motorola/DIN41585)
- Impedance
- 50/75 Ω
- Other
- -
Electrical
- Power requirements
- 12-15 V DC
- Current drain RX
- 10 W
- TX
- -
Physical
- Dimensions (w×h×d)
- 115 × 45 × 165 mm (4.53 × 1.77 × 6.50 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1974 and 1986
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2883
- MPN
- HANDIC-000006-(NEWER)
Manuals, diagrams and brochures
- Handic 006 Owner's Manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Handic 006 (Newer). Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Handic 006 (Newer) is around:
- EUR 0.00
These estimates are based on the following prices:
