Handic 1600
Desktop VHF/UHF Scanner / receiver
Add a review (+10 rep) Own this rig? Add it to your shack

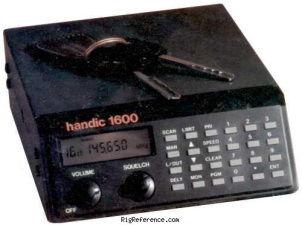

The Handic 1600 is a desktop VHF/UHF scanner/receiver covering 68-88 / 108-136 / 138-174 / 380-512 MHz. It utilizes a double conversion superheterodyne receiver system with IF frequencies of 1st: 10.7 MHz and 2nd: 455 KHz. The Handic 1600 offers 50 dB image rejection at 154 MHz, 1 memory bank with 16 channels, and a current drain of 120 mA (squelched). Dimensions are 50 × 130 × 180 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 16 channels in 1 bank(s) @ 16 channels/second
Receiver
- RX-range
- 68-88 / 108-136 / 138-174 / 380-512 MHz
- Modulations
- AM FM
- Sensitivity
- AM 108-136 MHz: 2 µV (20 dB S/N)
FM: 68-88 MHz: 0.5 µV (20 dB S/N)
FM: 138-174/380-512 MHz: 1 µV (20 dB S/N) - Selectivity
- +/- 9 kHz (-6 dB), +/-15 kHz (-50 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 10.7 MHz
2nd: 455 KHz - Image rejection
- 50 dB @ 154 MHz
- Audio output
- ?
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 12V DC (plus a 9 V battery for memory backup)
- Current drain RX
- 120 mA (squelched)
- TX
- -
Physical
- Dimensions (w×h×d)
- 130 × 50 × 180 mm (5.12 × 1.97 × 7.09 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2892
- MPN
- HANDIC-001600
Manuals, diagrams and brochures
- Handic 1600 Owners Manual PDF - Unknown size, submitted by RigReference
