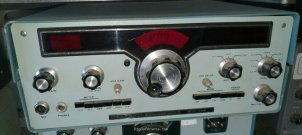

Heathkit HW-104

HF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Heathkit HW-104 is a HF transceiver covering 80-10 m. It has an RF output of 1 / 100 W and requires 12-16 V DC. The current drain is 2 A in receive mode and 3-20 A in transmit mode. Dimensions are 146 × 367 × 352 mm. Image rejection is 60 dB.

General characteristics

HAM bands: 80m 40m 20m 15m 10m
Frequency stability: ?
Tuning steps: Continuous
Memories: None

Receiver

RX-range: 80-10 m
Modulations: CW USB LSB
Sensitivity: ≤ 1 µV (S+N/N)
Selectivity: SSB: 2.1 kHz (-6 dB), 7 kHz (-60 dB)
CW: 400 Hz (-6 dB), 2 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 80-10 m
Modulations: CW USB LSB
RF-output: 1 / 100 W

Connections

Antenna: Proprietary
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12-16 V DC
Current drain RX: 2 A
TX: 3-20 A

Physical

Dimensions (w×h×d): 367 × 146 × 352 mm (14.45 × 5.75 × 13.86 in)
Weight: 7.00 kg (15.4 lbs)
Form factor: Base Station
Manufactured: Between 1975 and 1977 in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2920
MPN: HEATHKIT-HW-000104
