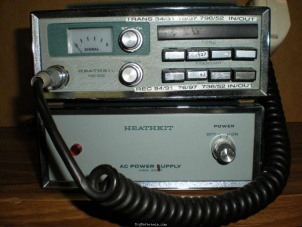

Heathkit HW-202

Mobile 2m Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Heathkit HW-202 is a Mobile 2m Transceiver. It covers 143.9-148.3 MHz for both Rx and Tx with 6 XTAL channels. The receiver system is a double conversion superheterodyne, XTAL with IF frequencies of 10.7 MHz / 455 kHz. RF output is 10 W and audio output is 2 W. It features 6 memory channels and requires 12.6-16 V DC. Dimensions are 70 × 210 × 251 mm. A tone burst encoder is optional.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 6 XTAL channels for Rx and Tx
Memories: 6 channels in bank(s)

Receiver

RX-range: 143.9-148.3 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne, XTAL
IF-frequencies: 10.7 MHz / 455 kHz
Image rejection: ?
Audio output: 2 W

Transmitter

TX-range: 143.9-148.3 MHz
Modulations: FM
RF-output: 10 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 12.6-16 V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 210 × 70 × 251 mm (8.27 × 2.76 × 9.88 in)
Weight: 4.50 kg (9.9 lbs)
Form factor: Mobile
Manufactured: Between 1973 and 197x in USA

Other features

Usage: Amateur / Ham radio operators
Features + options: Tone burst encoder optional
Accessories: -
RigReference ID: 2924
MPN: HEATHKIT-HW-000202
