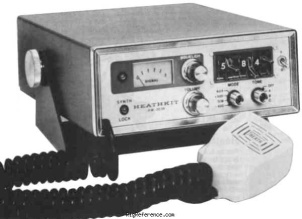

The Heathkit HW-2036 is a Mobile 2m FM transceiver. It covers the frequency range of 143.5-148.5 MHz for both receive and transmit. The maximum RF output is 10 W and requires an external speaker for audio output. It operates on 12.6-16 V DC using the HWA-2036-3 Power Supply. The current drain is 0.7 A while receiving and 2.6 A max while transmitting. Dimensions are 70 × 210 × 249 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 143.5-148.5 MHz
- Modulations
- FM
- Sensitivity
- ± 0.15 µV for 12 dB SINAD
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Requires external speaker
Transmitter
- TX-range
- 143.5-148.5 MHz
- Modulations
- FM
- RF-output
- 10 W
Connections
- Antenna
- RCA (Tulip)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 12.6-16 V DC (HWA-2036-3 Power Supply)
- Current drain RX
- 0.7 A
- TX
- 2.6 A max
Physical
- Dimensions (w×h×d)
- 210 × 70 × 249 mm (8.27 × 2.76 × 9.80 in)
- Weight
- 3.20 kg (7.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in USA (late seventies)
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2925
- MPN
- HEATHKIT-HW-002036
Manuals, diagrams and brochures
- Heathkit HW-2036 assembly manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-2036. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Heathkit HW-2036 is around:
- USD 5.00 ~ USD 4.00
These estimates are based on the following prices:
