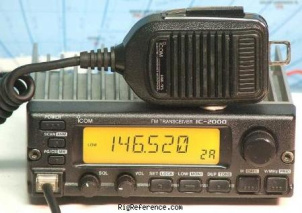

The ICOM IC-2000H is a Mobile VHF Transceiver. Frequency range RX/TX: 144-146 MHz (Europe), 144-148 MHz (USA). Image rejection >60 dB. RF output: High: 50 W, Medium: 10 W, Low: 5 W. Memory banks: 1. Memory channels: 60. Power requirements: 13.8V DC +/- 15%. Features: CTCSS encoder (CTCSS decoder option). Weight: 1.2 kg. Current drain RX: 0.8-1 A. Current drain TX: Max 10.5 A.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 60 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz (Europe)
144-148 MHz (USA)
RX: 118-174 MHz - Modulations
- AM FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- 15 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
144-148 MHz (USA)
RX: 118-174 MHz - Modulations
- FM
- RF-output
- High: 50 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 0.8-1 A
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1995 and 1998 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS encoder (CTCSS decoder option)
- Accessories
- -
- RigReference ID
- 2974
- MPN
- ICOM-IC-002000H
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2000H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-2000H is around:
- USD 71.00 ~ USD 52.00
