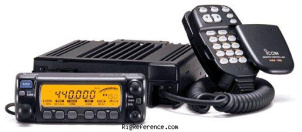

The ICOM IC-207H is a Mobile VHF/UHF Transceiver. It covers 118-174 / 400-479 MHz for reception and 144-146 / 430-440 MHz for transmission (Europe). The radio features image rejection better than 60 dB. RF output is selectable: High: 50/35 W, Mid hi: 20/20 W, Mid lo: 10/10 W, Low: 5/5 W. It has 1 memory bank with 162 channels. The IC-207H includes CTCSS and is 9K6 packet ready. Current drain during reception is 0.8-1 A and max 12 A during transmission. Dimensions are 40 × 140 × 185 mm. It requires 13.8V DC power.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 162 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 400-479 MHz
- Modulations
- AM FM
- Sensitivity
- 0.18 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB)
30 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
- Modulations
- FM
- RF-output
- High: 50/35 W, Mid hi: 20/20 W, Mid lo: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.8-1 A
- TX
- Max 12 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 185 mm (5.51 × 1.57 × 7.28 in)
- Weight
- 1.17 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. 9K6 packet ready.
- Accessories
- -
- RigReference ID
- 2979
- MPN
- ICOM-IC-000207H
