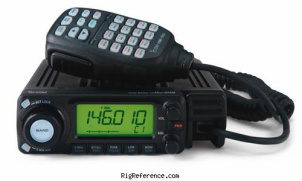

The ICOM IC-208D is a Mobile VHF/UHF Transceiver. It covers 118-1000 MHz for receive and 144-146 / 430-440 MHz (Asia) for transmit. Image rejection is better than 60 dB. RF output power options are High: 50 / 50 W, Medium: 15 / 15 W, Low: 5 / 5 W. It features CTCSS & DTMF and a multi color display. The radio has 1 memory bank with 500 channels. Power requirements are 13.8V DC. Current drain on transmit is Max 11.5 A. Dimensions are 40 × 141 × 185 mm. The weight is 1.2 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 500 channels in 1 bank(s)
Receiver
- RX-range
- 118-1000 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- 12 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- Better than 60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Asia)
- Modulations
- FM
- RF-output
- High: 50 / 50 W, Medium: 15 / 15 W, Low: 5 / 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 141 × 40 × 185 mm (5.55 × 1.57 × 7.28 in) dimensions control head: 111×40×39 mm
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2003 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS & DTMF. Multi color display.
- Accessories
- -
- RigReference ID
- 2980
- MPN
- ICOM-IC-000208D
