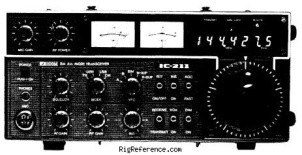

The ICOM IC-211 is a VHF transceiver. It covers 144-148 MHz for both receive and transmit. The RF output is FM/CW: 1-10 W, SSB: 10 W PEP. It features NB, VOX, and dimmer. The power requirements are 13.8V DC or mains. Dimensions are 110 × 240 × 264 mm. It weighs 6.1 kg. Current drain is 0.9-1.1 A while receiving and 1.8-3.3 A while transmitting. Image rejection is >60 dB.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-148 MHz
- Modulations
- FM CW SSB
- Sensitivity
- FM: More than 30 dB S+N+D/N+D at 1 µV
SSB/CW: <0.5 µV (10 dB S+N/N) - Selectivity
- FM: >15 kHz (-6 dB), <30 kHz (-60 dB)
SSB/CW: >2.4 kHz (-6 dB), <4.8 kHz (-60 dB) - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >60 dB
- Audio output
- ?
Transmitter
- TX-range
- 144-148 MHz
- Modulations
- FM CW SSB
- RF-output
- FM/CW: 1-10 W, SSB: 10 W PEP
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- 0.9-1.1 A
- TX
- 1.8-3.3 A
Physical
- Dimensions (w×h×d)
- 240 × 110 × 264 mm (9.45 × 4.33 × 10.39 in)
- Weight
- 6.10 kg (13.5 lbs)
- Form factor
- Unknown
- Manufactured
- Between 197x and 197x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- NB, VOX, dimmer
- Accessories
- -
- RigReference ID
- 2983
- MPN
- ICOM-IC-000211
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-211. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-211 in Good condition is around:
- USD 150
These estimates are based on the following prices:
