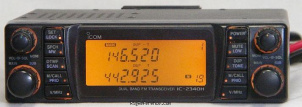

The ICOM IC-2340H is a mobile VHF/UHF transceiver. It covers 144-146 / 430-440 MHz (Europe) or 144-148 / 440-450 MHz (USA) for both receive and transmit. The RF output power is High: 45/35 W, Medium: 10/10 W, Low: 5/5 W. It features Twin RX. Dimensions are 40 × 140 × 165 mm. It requires 13.8V DC power and weighs 1.3 kg.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA)
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA)
Modulations: FM
RF-output: High: 45/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 140 × 40 × 165 mm (5.51 × 1.57 × 6.50 in)
Weight: 1.30 kg (2.9 lbs)
Form factor: Mobile
Manufactured: Between 1994 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 3003
MPN: ICOM-IC-002340H

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM IC-2340 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
