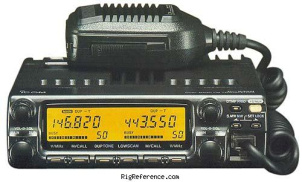

The ICOM IC-2350H is a Mobile VHF/UHF Transceiver. It covers 118-174 / 320-479 / 830-950 MHz for reception and 144-146 / 430-440 MHz (Europe) for transmission. The IC-2350H has a RF output of High: 50/35 W, Medium: 10/10 W, Low: 5/5 W and features Twin RX. It has 1 memory bank with 110 channels. The transceiver requires 13.8V DC power and weighs 1.2 kg. Dimensions are 40 × 140 × 204 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 110 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 / 320-479 / 830-950 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
- Modulations
- FM
- RF-output
- High: 50/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.8 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 204 mm (5.51 × 1.57 × 8.03 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1995 and 199x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
- Accessories
- -
- RigReference ID
- 3004
- MPN
- ICOM-IC-002350H
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2350H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-2350H in Good condition is around:
- EUR 338
These estimates are based on the following prices:
