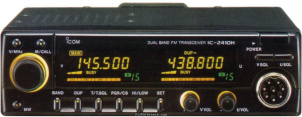

The Icom IC-2410H dual band mobile FM transceiver boasts 45 watts output on 2 meters and 35 watts on 440 MHz. This rig features a large dual-band LCD display and simultaneous dual-band receive. And unlike the previous ICOM IC-2400A, it adds simultaneous receive on the same band. The controls are easy to use. Receive range is 138-174, 440-450 MHz. It features 36 memories. Other enhancements include independent volume and squelch setting switches, 20 dB RF attenuator, illuminated switches, scanning, selectable LCD intensity, auto-dialing, and optional voice synthesizer. There is even a built-in antenna duplexer for easy dual band antenna connection, so there is just one SO-239 on the rear panel.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 36 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 MHz / 320-479 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 45/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 175 mm (5.51 × 1.57 × 6.89 in)
- Weight
- 1.35 kg (3.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1991 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
Dual Band Receive
CTCSS Tone Encode
Sub Band Mute
Two Call Channels
Dimmer
Priority Watch
Auto Repeater Function
Scan Functions
Remote Hand Mic - Accessories
- -
- RigReference ID
- 3009
- MPN
- ICOM-IC-002410H
Manuals, diagrams and brochures
- ICOM IC-2410A/E/H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2410H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-2410H is around:
- USD 18.00
These estimates are based on the following prices:
