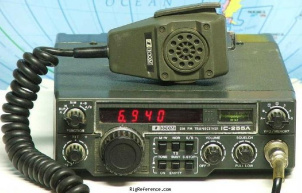

ICOM IC-255A

Mobile VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-255A is a Mobile VHF Transceiver. It covers 144-148 MHz for both receive and transmit with tuning steps of 15 / 5 kHz. The RF output is selectable between High: 25 W and Low: 1 W. It features 1 memory bank with 5 channels. Power requirements are 13.8V DC. The current drain is Max 0.7 A while receiving and Max 5.5 A while transmitting. Dimensions are 64 × 185 × 223 mm.

General characteristics

HAM bands: 2m
Frequency stability: ?
Tuning steps: 15 / 5 kHz
Memories: 5 channels in 1 bank(s)

Receiver

RX-range: 144-148 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-148 MHz
Modulations: FM
RF-output: High: 25 W, Low: 1 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 0.7 A
TX: Max 5.5 A

Physical

Dimensions (w×h×d): 185 × 64 × 223 mm (7.28 × 2.52 × 8.78 in)
Weight: 2.50 kg (5.5 lbs)
Form factor: Mobile
Manufactured: Between 1979 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3016
MPN: ICOM-IC-000255A
