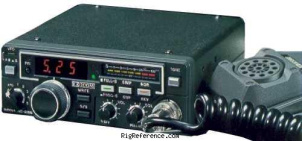

The ICOM IC-25E is a Mobile VHF Transceiver. It covers 144-146 MHz for both receive and transmit frequencies. Tuning steps are selectable at 5 / 25 kHz. The receiver system utilizes double conversion superheterodyne with IF frequencies of 1st: 19.6 MHz and 2nd: 455 kHz. RF output is selectable at High: 25 W or Low: 1 W. It features 1 memory bank with 5 channels. Power requirements are 13.8V DC. Current drain in receive mode is 600 mA max, and 4.8 A max in transmit mode. Dimensions are 50 × 140 × 177 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 25 kHz
- Memories
- 5 channels in 1 bank(s)
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 19.6 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 600 mA max
- TX
- 4.8 A max
Physical
- Dimensions (w×h×d)
- 140 × 50 × 177 mm (5.51 × 1.97 × 6.97 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1981 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3019
- MPN
- ICOM-IC-000025E
Manuals, diagrams and brochures
- IC-25A E Maintenance Manual.PDF 61E4BDBDBB7080.37582693 PDF - 13.22 MB, submitted by Merle Schnick
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-25E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the ICOM IC-25E is around:
- EUR 23.00
These estimates are based on the following prices:
