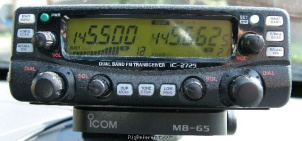

ICOM IC-2725E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (3) Compare

Find ICOM IC-2725E rigs and spare parts on eBay

The ICOM IC-2725E is a Mobile VHF/UHF Transceiver. It covers 118-899.9875 MHz for reception and 144-146 / 430-440 MHz for transmission. The RF output power is High: 50/35 W, Medium: ?/? W, Low: 5/5 W. It features CTCSS & DTCS, 9k6 packet ready and Twin RX. The radio has 1 memory bank with 212 channels. Power requirements are 13.8V DC. The weight is 1.4 kg. Current drain is Max 1.8 A (RX) and Max 12 A (TX). Dimensions are 50 × 140 × 270 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 212 channels in 1 bank(s)

Receiver

RX-range: 118-899.9875 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 50/35 W, Medium: ?/? W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 1.8 A
TX: Max 12 A

Physical

Dimensions (w×h×d): 140 × 50 × 270 mm (5.51 × 1.97 × 10.63 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 2002 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS & DTCS. 9k6 packet ready. Twin RX
Accessories: -
RigReference ID: 3031
MPN: ICOM-IC-002725E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2725E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-2725E is around:

EUR 26.00 ~ EUR 35.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2023	EUR 300.00	New / Good	Tom Nilssen
2012	EUR 175.00	Used / Good
2008	EUR 300.00	New / Good	Tom Nilssen
