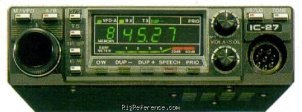

The ICOM IC-27A is a Mobile VHF Transceiver. It covers 140-150 MHz for both transmit and receive. The radio features CTCSS and has selectable tuning steps of 5/15 kHz. It offers High: 25 W, Low: 5 W RF output power. The IC-27A includes 1 memory bank with 10 channels. Power requirements are 13.8V DC. Dimensions are 140 × None × 177 mm and the weight is 1.2 kg. Current drain is Max 600 mA in receive mode and Max 6 A in transmit mode.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 15 kHz
- Memories
- 10 channels in 1 bank(s)
Receiver
- RX-range
- 140-150 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140-150 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 140 × × 177 mm (5.51 × 0.00 × 6.97 in)
- Weight
- 1.20 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1983 and 198x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS
- Accessories
- -
- RigReference ID
- 3034
- MPN
- ICOM-IC-000027A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-27A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-27A in Good condition is around:
- USD 84
These estimates are based on the following prices:
