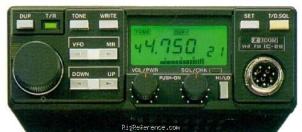

The ICOM IC-28A is a VHF transceiver. It covers 138-174 MHz in receive and 140.1-150 MHz in transmit. The RF output is selectable between High: 25 W and Low: 5 W. It features 1 memory bank with 21 channels. Power requirements are 13.8V DC. Dimensions are 50 × 137 × 130 mm. The current drain in transmit is Max 6 A.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 15 / 20 / 25 kHz
- Memories
- 21 channels in 1 bank(s)
Receiver
- RX-range
- 138-174 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 140.1-150 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 6 A
Physical
- Dimensions (w×h×d)
- 137 × 50 × 130 mm (5.39 × 1.97 × 5.12 in)
- Weight
- ?
- Form factor
- Unknown
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3042
- MPN
- ICOM-IC-000028A
