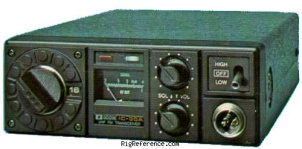

The ICOM IC-30A is a Mobile UHF Transceiver. It covers 430-434 MHz for both reception and transmission. The radio has an RF output of High: 10 W, Low: 1 W. It features 1 memory bank with 22 memory channels. Power requirements are 13.8V DC. Dimensions are 58 × 156 × 244 mm.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 22 channels in 1 bank(s)
Receiver
- RX-range
- 430-434 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-434 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 156 × 58 × 244 mm (6.14 × 2.28 × 9.61 in)
- Weight
- 2.40 kg (5.3 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3062
- MPN
- ICOM-IC-000030A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
