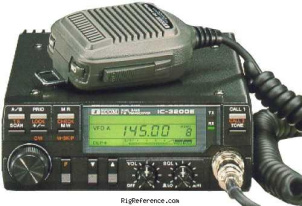

ICOM IC-3200E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-3200E rigs and spare parts on eBay

The ICOM IC-3200E is a mobile VHF/UHF transceiver. It covers 144-146/430-440 MHz for both receive and transmit. The radio has selectable tuning steps of 12.5 or 25 kHz and an RF output of 25W high or 5W low on both bands. It requires 13.8V DC power and weighs 1.9 kg. Dimensions are 50 × 140 × 207 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: 12.5 / 25 kHz
Memories: ?

Receiver

RX-range: 144-146/430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146/430-440 MHz
Modulations: FM
RF-output: High: 25/25 W, Low: 5/5 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 140 × 50 × 207 mm (5.51 × 1.97 × 8.15 in)
Weight: 1.90 kg (4.2 lbs)
Form factor: Mobile
Manufactured: Between 1985 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3065
MPN: ICOM-IC-003200E
