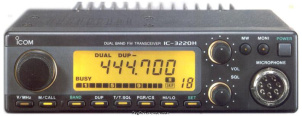

The ICOM IC-3220H is a Mobile VHF/UHF Transceiver. It covers 144-146/430-440 MHz (Europe) or 140-150/440-450 MHz (USA) for both receive and transmit. The RF output is High: 45/35 W, Low 2: 10/10 W, Low 1: 5/5 W. It has 1 memory bank with 36 channels. The transceiver requires 13.8V DC power and draws 0.8-1.2 A in receive mode and a maximum of 10 A in transmit mode. Dimensions are 40 × 140 × 195 mm and weighs 1.4 kg.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 36 channels in 1 bank(s)
Receiver
- RX-range
- 144-146/430-440 MHz (Europe)
140-150/440-450 MHz (USA) - Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146/430-440 MHz (Europe)
140-150/440-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 45/35 W, Low 2: 10/10 W, Low 1: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 0.8-1.2 A
- TX
- Max 10 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 195 mm (5.51 × 1.57 × 7.68 in)
- Weight
- 1.40 kg (3.1 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3069
- MPN
- ICOM-IC-003220H
