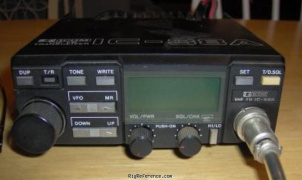

The ICOM IC-38A is a Mobile VHF Transceiver. It covers 220-225 MHz for both receive and transmit. The frequency stability is ±10 p.p.m. (-10°C to +60°C) with tuning steps of 5 / 10 / 15 / 20 / 25 kHz. It uses a Double conversion superheterodyne receiver system with IF frequencies of 1st: 17.2 MHz and 2nd: 455 kHz, providing 60 dB image rejection. The RF output is selectable between High: 25 W and Low: 5 W. Audio output is 2.4 W (8 ohms at 10% distortion). It features 1 memory bank with 21 channels. Power requirements are 13.8 V DC ±15%. Dimensions are 50 × 140 × 171 mm and it weighs 1.18 kg. Current drain is 450-800 mA in receive mode and 3-6.5 A in transmit mode.
General characteristics
- HAM bands
- 1.25m
- Frequency stability
- ±10 p.p.m. (-10°C to +60°C)
- Tuning steps
- 5 / 10 / 15 / 20 / 25 kHz
- Memories
- 21 channels in 1 bank(s)
Receiver
- RX-range
- 220-225 MHz
- Modulations
- FM
- Sensitivity
- 0.18 µV for 12 dB SINAD
- Selectivity
- More than 15 kHz (-6 dB), less than 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 17.2 MHz
2nd: 455 kHz - Image rejection
- 60 dB
- Audio output
- 2.4 W (8 ohms at 10% distortion)
Transmitter
- TX-range
- 220-225 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- 450-800 mA
- TX
- 3-6.5 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 171 mm (5.51 × 1.97 × 6.73 in)
- Weight
- 1.18 kg (2.6 lbs)
- Form factor
- Mobile
- Manufactured
- Between 198x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3083
- MPN
- ICOM-IC-000038A
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-38A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-38A is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
