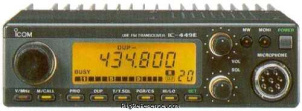

ICOM IC-449E

Mobile UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-449E rigs and spare parts on eBay

The ICOM IC-449E is a Mobile UHF Transceiver. It covers 430-440 MHz for both receive and transmit. The RF output power is selectable between High: 35 W, Low 3: 20 W, Low 2: 10 W, and Low 1: 5 W. It requires 13.8V DC power. Dimensions are 50 × 140 × 155 mm. The current drain is Max 0.5 A while receiving and Max 9.5 A while transmitting.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: FM
RF-output: High: 35 W, Low 3: 20 W, Low 2: 10 W, Low 1: 5 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 0.5 A
TX: Max 9.5 A

Physical

Dimensions (w×h×d): 140 × 50 × 155 mm (5.51 × 1.97 × 6.10 in)
Weight: 1,000 gr (2.2 lbs)
Form factor: Mobile
Manufactured: Between 1990 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3092
MPN: ICOM-IC-000449E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-449E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
