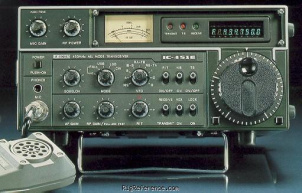

ICOM IC-451E

Desktop UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-451E rigs and spare parts on eBay

The ICOM IC-451E is a Desktop UHF Transceiver. It covers 430-440 MHz for both receive and transmit. The maximum RF output is 10 W. It requires 13.8V DC or mains power. Dimensions are 111 × 241 × 264 mm. The IC-451E draws a maximum of 800 mA in receive mode and 3.5 A in transmit mode.

General characteristics

HAM bands: 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 430-440 MHz
Modulations: FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 430-440 MHz
Modulations: FM CW SSB
RF-output: Max 10 W

Connections

Antenna: N-type
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC or mains
Current drain RX: Max 800 mA
TX: Max 3.5 A

Physical

Dimensions (w×h×d): 241 × 111 × 264 mm (9.49 × 4.37 × 10.39 in)
Weight: 7.20 kg (15.9 lbs)
Form factor: Base Station
Manufactured: Between 1980 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3093
MPN: ICOM-IC-000451E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!
