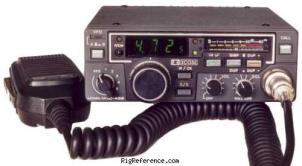

The ICOM IC-45E is a UHF transceiver covering 430-440 MHz for both receive and transmit. It features tuning steps of 5 / 25 kHz, image rejection greater than 60 dB, and an RF output of 10 W (High) or 1 W (Low). The radio has 1 memory bank with 5 channels and requires 13.8V DC power. Its dimensions are 50 × 140 × 177 mm and it weighs 1.5 kg. Current drain is 500-700 mA while receiving and 1.7-3.5 A while transmitting.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 25 kHz
- Memories
- 5 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- <0.3 µV (12 dB SINAD)
- Selectivity
- 15 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- >60 dB
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- N-type
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 500-700 mA
- TX
- 1.7-3.5 A
Physical
- Dimensions (w×h×d)
- 140 × 50 × 177 mm (5.51 × 1.97 × 6.97 in)
- Weight
- 1.50 kg (3.3 lbs)
- Form factor
- Unknown
- Manufactured
- Between 1983 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3095
- MPN
- ICOM-IC-000045E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-45E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-45E is around:
- USD 215 ~ USD 400
This estimate is based on similar equipment and may not reflect the exact value of this model.
