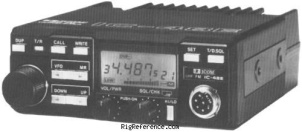

The ICOM IC-48E is a Mobile UHF Transceiver. It covers 430-440 MHz for both transmit and receive. The radio features selectable tuning steps of 12.5 / 25 kHz. It has an RF output of High: 25 W, Low: 5 W. The IC-48E includes 1 memory bank with 21 channels. It requires 13.8V DC power. Dimensions are 50 × 140 × 135 mm.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 12.5 / 25 kHz
- Memories
- 21 channels in 1 bank(s)
Receiver
- RX-range
- 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Low: 5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 140 × 50 × 135 mm (5.51 × 1.97 × 5.31 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 1986 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3102
- MPN
- ICOM-IC-000048E
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-48E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-48E in Good condition is around:
- EUR 100
These estimates are based on the following prices:
