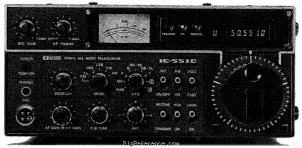

ICOM IC-551D

Desktop VHF Transceiver

Specs Manuals (0) Reviews (0) Prices (1) Compare

Find ICOM IC-551D rigs and spare parts on eBay

The ICOM IC-551D is a desktop VHF transceiver. It covers 50-54 MHz for both transmit and receive. The RF output is 1-50 W (AM: 0-25 W). It requires 13.8V DC power. Dimensions are 111 × 241 × 311 mm. Current drain is Max 0.7 A in receive and Max 15 A in transmit.

General characteristics

HAM bands: 6m
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 50-54 MHz
Modulations: AM FM CW SSB
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 50-54 MHz
Modulations: AM FM CW SSB
RF-output: 1-50 W (AM: 0-25 W)

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: Max 0.7 A
TX: Max 15 A

Physical

Dimensions (w×h×d): 241 × 111 × 311 mm (9.49 × 4.37 × 12.24 in)
Weight: 6.60 kg (14.6 lbs)
Form factor: Base Station
Manufactured: Between 19xx and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3119
MPN: ICOM-IC-000551D

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-551D. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-551D is around:

USD 148.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2016	USD 300.00	Used / Good	roger
