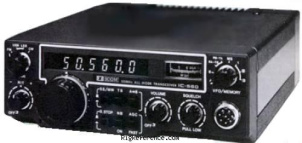

The ICOM IC-560 is a Mobile 6m Transceiver. The frequency range for both transmit and receive is 50-54 MHz. RF output is selectable as either High: 10 W or Low: 1 W. It features Memories scan, Band scan, Variable shifts, RIT, NB, Digital display, and Analog S-meter. Power requirements are 13.8V DC with a current drain of 3.5 A max during transmit.
General characteristics
- HAM bands
- 6m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 3 channels in 1 bank(s)
Receiver
- RX-range
- 50-54 MHz
- Modulations
- FM CW USB LSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 50-54 MHz
- Modulations
- FM CW USB LSB
- RF-output
- High: 10 W, Low: 1 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- 3.5 A max
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Memories scan
Band scan
Variable shifts
RIT
NB
Digital display
Analog S-meter - Accessories
- -
- RigReference ID
- 3120
- MPN
- ICOM-IC-000560
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-560. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-560 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
