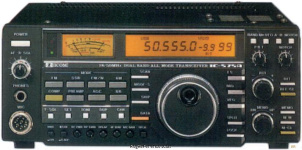

ICOM IC-575A

General characteristics

HAM bands

6m

Frequency stability

?

Tuning steps

?

Memories

99 channels in 1 bank(s)

Receiver

RX-range

26-56 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

AM: <1 µV (10 dB S/N)
FM: <0.25 µV (12 dB SINAD)
SSB/CW: <0.13 µV (10 dB S/N)

Selectivity

AM: 6 kHz (-6 dB), 15 kHz (-60 dB)
FM: 15 kHz (-6 dB), 30 kHz (-60 dB)
SSB/CW: 2.3 kHz (-6 dB), 4 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

28-29.7 / 50-54 MHz

Modulations

AM   FM   CW   SSB

RF-output

AM: 1-4 W, FM/SSB/CW: 1-10 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC or mains

Current drain RX

1.4-1.6 A

TX

Max 5.2 A

Physical

Dimensions (w×h×d)

241 × 95 × 239 mm (9.49 × 3.74 × 9.41 in)

Weight

6.10 kg (13.5 lbs)

Form factor

Base Station

Manufactured

Between 1988 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3121

MPN

ICOM-IC-000575A

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-575A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-575A is around:

• USD 90.00
