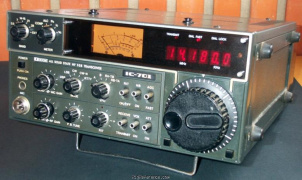

The ICOM IC-701 is a 10-160 m transceiver. Max RF output is 100 W. Power requirements are 13.8V DC. Current drain during transmit is Max 18 A. Dimensions are 111 × 241 × 311 mm.
General characteristics
- HAM bands
- 160m 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 10-160 m
- Modulations
- CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m
- Modulations
- CW SSB RTTY
- RF-output
- Max 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 18 A
Physical
- Dimensions (w×h×d)
- 241 × 111 × 311 mm (9.49 × 4.37 × 12.24 in)
- Weight
- 7.30 kg (16.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1978 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3127
- MPN
- ICOM-IC-000701
Manuals, diagrams and brochures
- IC-701 User manual PDF - 6.03 MB, submitted by Ian
- A Unit H JPEG - 2.61 MB, submitted by Ian
- ALC Unit H JPEG - 667.1 kB, submitted by Ian
- B Unit H JPEG - 5.15 MB, submitted by Ian
- Driver Unit H JPEG - 6.35 MB, submitted by Ian
- EF JPEG - 900.3 kB, submitted by Ian
- Filter Unit H JPEG - 1.13 MB, submitted by Ian
- IC-701/1 JPEG - 5.23 MB, submitted by Ian
- IC-701/2 JPEG - 5.80 MB, submitted by Ian
- IC-701/3 JPEG - 6.12 MB, submitted by Ian
- IC-701 Back 1 JPEG - 4.82 MB, submitted by Ian
- IC-701 Back 2 JPEG - 4.74 MB, submitted by Ian
- LED Unit JPEG - 535.3 kB, submitted by Ian
- Matrix Board JPEG - 489.5 kB, submitted by Ian
- Schematic Name Page JPEG - 532.9 kB, submitted by Ian
- PA Unit H JPEG - 1.68 MB, submitted by Ian
- PLL Unit JPEG - 1.79 MB, submitted by Ian
- Relay Switch Unit H JPEG - 641.9 kB, submitted by Ian
- RF Unit H JPEG - 2.46 MB, submitted by Ian
