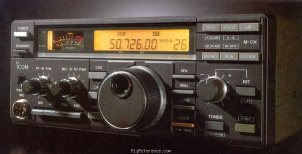

The ICOM IC-726 is a Desktop HF/VHF Transceiver. It covers a frequency range of 0.03-33 / 46.2-61.1 MHz for reception and 10-160 m + WARC/50-54 MHz for transmission. The RF output power is HF: 10-100 W (AM 10-40 W), 6 m: 1-10 W (AM 1-4 W). It requires a power supply of 13.8V DC and has a maximum current drain of 20 A during transmission.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-33 / 46.2-61.1 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC/50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- HF: 10-100 W (AM 10-40 W), 6 m: 1-10 W (AM 1-4 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1989 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3140
- MPN
- ICOM-IC-000726
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
