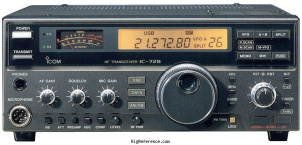

The ICOM IC-728 is a 10-160 m + WARC transceiver. RF output is 10-100 W (AM 10-40 W). Power requirements are 13.8V DC. Dimensions are 94 × 241 × 239 mm. Current drain is Max 1.5 A in receive and Max 20 A in transmit.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- None
Receiver
- RX-range
- 0.5-30 MHz
- Modulations
- AM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 10-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.5 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
- Weight
- 4.60 kg (10.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3141
- MPN
- ICOM-IC-000728
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-728. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-728 in Good condition is around:
- USD 300
These estimates are based on the following prices:
