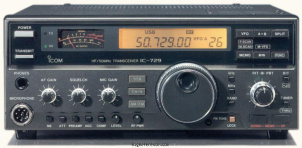

The ICOM IC-729 is a Desktop HF/VHF Transceiver covering 0.5-30 / 46.2-61.1 MHz (RX) and 10-160 m + WARC / 50-54 MHz (TX). RF output is 10-100 W (SSB/CW), 1-10 W (AM) with AM output of 10-40 W/1-4 W. It requires 13.8V DC power and has a maximum current drain of 20 A during transmit. Dimensions are 94 × 241 × 239 mm and it weighs 4.6 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 / 46.2-61.1 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 / 1-10 W (AM 10-40/1-4 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 241 × 94 × 239 mm (9.49 × 3.70 × 9.41 in)
- Weight
- 4.60 kg (10.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1992 and 199x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3142
- MPN
- ICOM-IC-000729
Manuals, diagrams and brochures
- ICOM IC-729 Service Manual PDF - 13.81 MB, submitted by Robert E Sturcke
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-729. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-729 in Good condition is around:
- USD 338
These estimates are based on the following prices:
