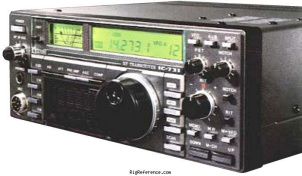

The ICOM IC-731 is a 10-160 meters + WARC transceiver. RF output is 10-100 W (AM 10-40 W). Power requirements are 13.8V DC. Dimensions are 94 × 241 × 272 mm. The IC-731 was manufactured in Japan from 1985 to 198x.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W (AM 10-40 W)
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 1.2-1.5 A
- TX
- Max 20 A
Physical
- Dimensions (w×h×d)
- 241 × 94 × 272 mm (9.49 × 3.70 × 10.71 in)
- Weight
- 5.00 kg (11.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1985 and 198x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 3144
- MPN
- ICOM-IC-000731
