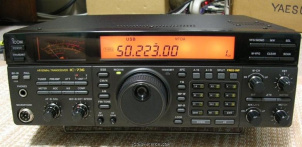

ICOM IC-736

General characteristics

HAM bands

160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

10-160 m + WARC/50-54 MHz

Modulations

AM   FM   CW   SSB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

10-160 m + WARC/50-54 MHz

Modulations

AM   FM   CW   SSB

RF-output

100 / 100 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

Mains

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

330.2 × 111.76 × 284.48 mm (13.00 × 4.40 × 11.20 in)

Weight

10.48 kg (23.1 lbs)

Form factor

Base Station

Manufactured

Between 19xx and 19xx

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

3146

MPN

ICOM-IC-000736

Manuals, diagrams and brochures

IC-736 IC 738 User Manual PDF - 7.32 MB, submitted by Ian

IC-736 IC 738 Service Manual PDF - 8.08 MB, submitted by Ian

IC-736 IC 738 Review 1995 PDF - 1.09 MB, submitted by Ian



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-736. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-736 is around:

• USD 96.00
• GBP 180.00
