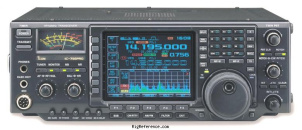

ICOM IC-756 Pro

Desktop HF/VHF Transceiver

Specs Manuals (1) Reviews (0) Prices (3) Compare

Find ICOM IC-756 Pro rigs and spare parts on eBay

The ICOM IC-756 Pro is a desktop HF/VHF transceiver. It covers 0.03-60 MHz in receive and 10-160 m + WARC/50-54 MHz in transmit. The receiver system is a triple-conversion superheterodyne with IF frequencies of 1st: 64.455 MHz, 2nd: 455 KHz, and 3rd: 36 KHz. Image rejection is >70 dB. RF output is 5-100 W (AM: 5-40 W). It features 1 memory bank with 99 channels. The IC-756 Pro includes IF-DSP, built-in auto-AT, built-in keyer and RTTY demodulator, and twin RX. Dimensions are 111 × 340 × 285 mm. Current drain is Max 3.5 A in receive and Max 23 A in transmit.

General characteristics

HAM bands: 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
Frequency stability: ?
Tuning steps: ?
Memories: 99 channels in 1 bank(s)

Receiver

RX-range: 0.03-60 MHz
Modulations: AM FM CW SSB RTTY
Sensitivity: AM (10 dB S/N)
0.5-1.8 MHz: 13 µV
1.8-30 MHz: 2 µV (Pre-amp 1 on)
50-54 MHz: 1 µV
FM (12 dB SINAD)
28-30 MHz: 0.5 µV (Pre-amp 1 on)
50-54 MHz: 0.32 µV (Pre-amp 2 on)
SSB/CW/RTTY (10 dB S/N)
1.8-30 MHz: 0.16 µV (Pre-amp 1 on)
50-54 MHz: 0.13 µV (Pre-amp 2 on)
Selectivity: AM (BW=6 kHz)
>6 kHz (-6 dB), <15 kHz (-60 dB)
FM (BW=15 kHz)
>12 kHz (-6 dB), <20 kHz (-60 dB)
SSB/RTTY (BW=2.4 kHz)
>2.4 kHz (-6 dB), <2.8 kHz (-60 dB)
CW (BW=500 H
Filters: ?
Receiver system: Triple-conversion superheterodyne
IF-frequencies: 1st: 64.455 MHz
2nd: 455 KHz
3rd: 36 KHz
Image rejection: >70 dB
Audio output: ?

Transmitter

TX-range: 10-160 m + WARC/50-54 MHz
Modulations: AM FM CW SSB RTTY
RF-output: 5-100/5-100 W (AM: 5-40 W)

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC +/- 15%
Current drain RX: Max 3.5 A
TX: Max 23 A

Physical

Dimensions (w×h×d): 340 × 111 × 285 mm (13.39 × 4.37 × 11.22 in)
Weight: 9.60 kg (21.2 lbs)
Form factor: Base Station
Manufactured: Between 2000 and 2001 in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: IF-DSP. Built-in auto-AT (HF: 16.7-150 ohms / 6 m: 20-125 ohms) Built-in keyer and RTTY demodulator. Twin RX
Accessories: -
RigReference ID: 3161
MPN: ICOM-IC-000756-PRO

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: ICOM IC-756Pro Advanced Operating Guide.pdf PDF - Unknown size, submitted by RigReference

: Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-756 Pro. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-756 Pro is around:

USD 80.00 ~ USD 95.00

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2021	USD 100.00	Used / Mint	Mark
2009	USD 750.00	Used / Good	dweiss
2004	USD 1200.00	Used / Mint	KenH
