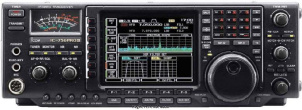

The ICOM IC-756 Pro III is a desktop HF/VHF transceiver. It covers a frequency range of 0.03-60 MHz for reception and 10-160 m + WARC / 50-54 MHz for transmission. The RF output is SSB/CW/FM/RTTY: 5-100/5-100 W (100% duty cycle), AM: 5-40/5-40 W. It features a 32 bit IF-DSP, built-in RTTY demodulator and auto-ATU. The IP3 is +30 dBm and it has Twin RX. The current drain is Max 3.5 A in receive mode and Max 23 A in transmit mode. Dimensions are 111 × 340 × 285 mm. It weighs 9.6 kg.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.03-60 MHz
- Modulations
- AM FM CW SSB RTTY
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- 70 dB
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB RTTY
- RF-output
- SSB/CW/FM/RTTY: 5-100/5-100 W (100% duty cycle), AM: 5-40/5-40 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- Max 3.5 A
- TX
- Max 23 A
Physical
- Dimensions (w×h×d)
- 340 × 111 × 285 mm (13.39 × 4.37 × 11.22 in)
- Weight
- 9.60 kg (21.2 lbs)
- Form factor
- Base Station
- Manufactured
- Between 2003 and 200x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 32 bit IF-DSP. Built-in RTTY demodulator and auto-ATU. IP3 = +30 dBm, Twin RX
- Accessories
- -
- RigReference ID
- 3163
- MPN
- ICOM-IC-000756-PRO-III
