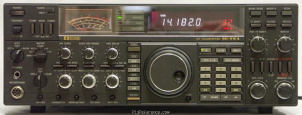

The ICOM IC-761 is a 10-160 m + WARC transceiver. RF output is 10-100 W. Power requirements are 13.8V DC or mains. Features include built-in auto-AT and RS-232C. Dimensions are 150 × 424 × 390 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.1-30 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC
- Modulations
- AM FM CW SSB
- RF-output
- 10-100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1987 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in auto-AT. RS-232C
- Accessories
- -
- RigReference ID
- 3166
- MPN
- ICOM-IC-000761
Manuals, diagrams and brochures
- ICOM IC-761 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
