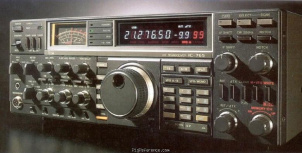

The Icom IC-765 is a full featured, multi-mode HF transceiver for the dedicated DX enthusiast. It operates from 160 to 10 meters and features a high performance 100 kHz to 30 MHz general coverage receiver built in. RF power is 10 to 100 watts SSB/CW/RTTY modes (10 to 40 watts AM). The 765 has sophisticated capabilities such as: dual digital VFOs, multi-function analog meter, all-mode squelch, Notch, Passband Tuning, RIT/XIT, pre-amp keypad and 20 dB attenuator. You also get 99 memories. The two color fluorescent digital display is easy to read. Serious CW operators will appreciate the built-in electronic keyer, full and semi break-in capability. The rear panel has an SO-239 antenna jack plus a receive only RCA phono jack. The 765 has a built in antenna tuner and this rig operates from a built-in power supply.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
?
Tuning steps
?
Memories
99 channels in 1 bank(s)

Receiver

RX-range
0.1-30 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
160-10 m + WARC
Modulations
AM   FM   CW   SSB
RF-output
SSB/CW: 10~100 W, AM: 10~40 W

Connections

Antenna
SO-239
Impedance
50 Ω
Other
-

Electrical

Power requirements
Mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
Weight
17.50 kg (38.6 lbs)
Form factor
Base Station
Manufactured
Between 199x and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Built-in auto-AT
Accessories
-
RigReference ID
3167
MPN
ICOM-IC-000765

Manuals, diagrams and brochures

ICOM IC-765 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Astonishing transceiver 13 years ago by f4dfr

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-765. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-765 is around:

  • USD 144.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2010 USD 900.00 Used / Good f4dfr
